How to Use Micro Guide

How to Use Micro Guide

Installation

Step 1

Place Micro Guide on the prepared area of skull.

Mark and drill the three holes - One for the Guide and two for the Micro Guide tabs.

Step 2

Add a drop of Loctite to the threaded part of the Guide Cannula,

Step 3

Screw the Guide with Dummy Cannula into the Micro-Guide and adjust to the desired depth below the pedestal. Let set for 30 minutes so the Loctite can dry.

Step 4

Deposit dental cement (glue) to the bottom of the Micro Guide and place assembly on the skull, Screw the tab set screws into the skull and let dry for thirty minutes.

[Contain ]

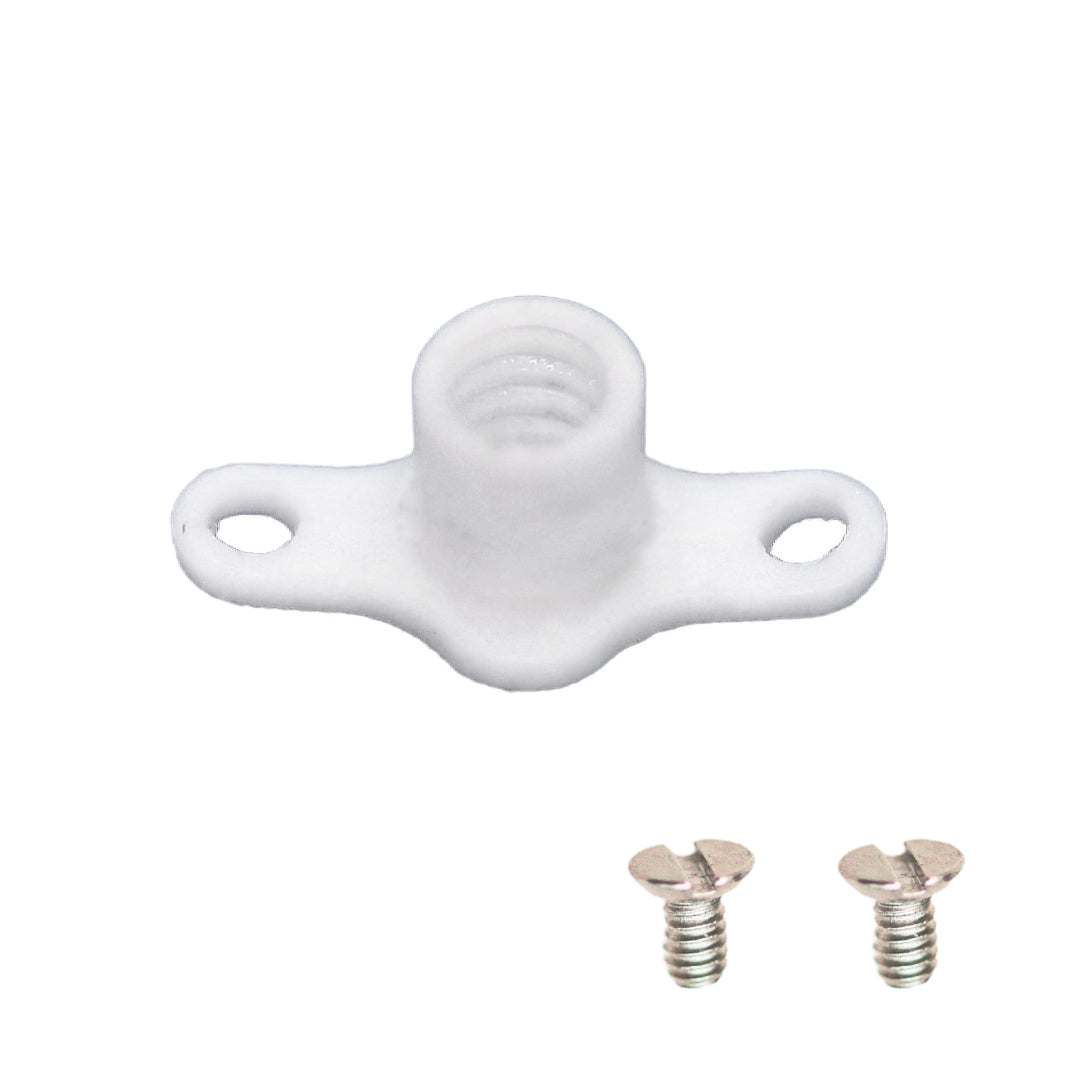

Micro Guide , 2 screws

[ Spec ]

LENGTH OPTION 2MM  5MM 8MM 11MM

*Picture use with C313G  Guide

Mating Internal C313LI/SPC(28)

Mating Dummy C313DC. C313DC(LG) C313DC/1(SM). C313DC/1/SPC(SM)

Mating Tubing C313CT(PE50)10FT/SKG. C313CT/SPC(PE50)

Mating Cap 303DCFT

303DC 303DCA 303DC

NOT FOR HUMAN USE.

Mating Guide :Pedestal  Diameter 3.5mm  Ex C313 C315 Standard Double Guide C235G-5
