How to Measure and Order Components for Single Cannula Infusion Systems

How to Measure and Order Components for Single Cannula Infusion Systems

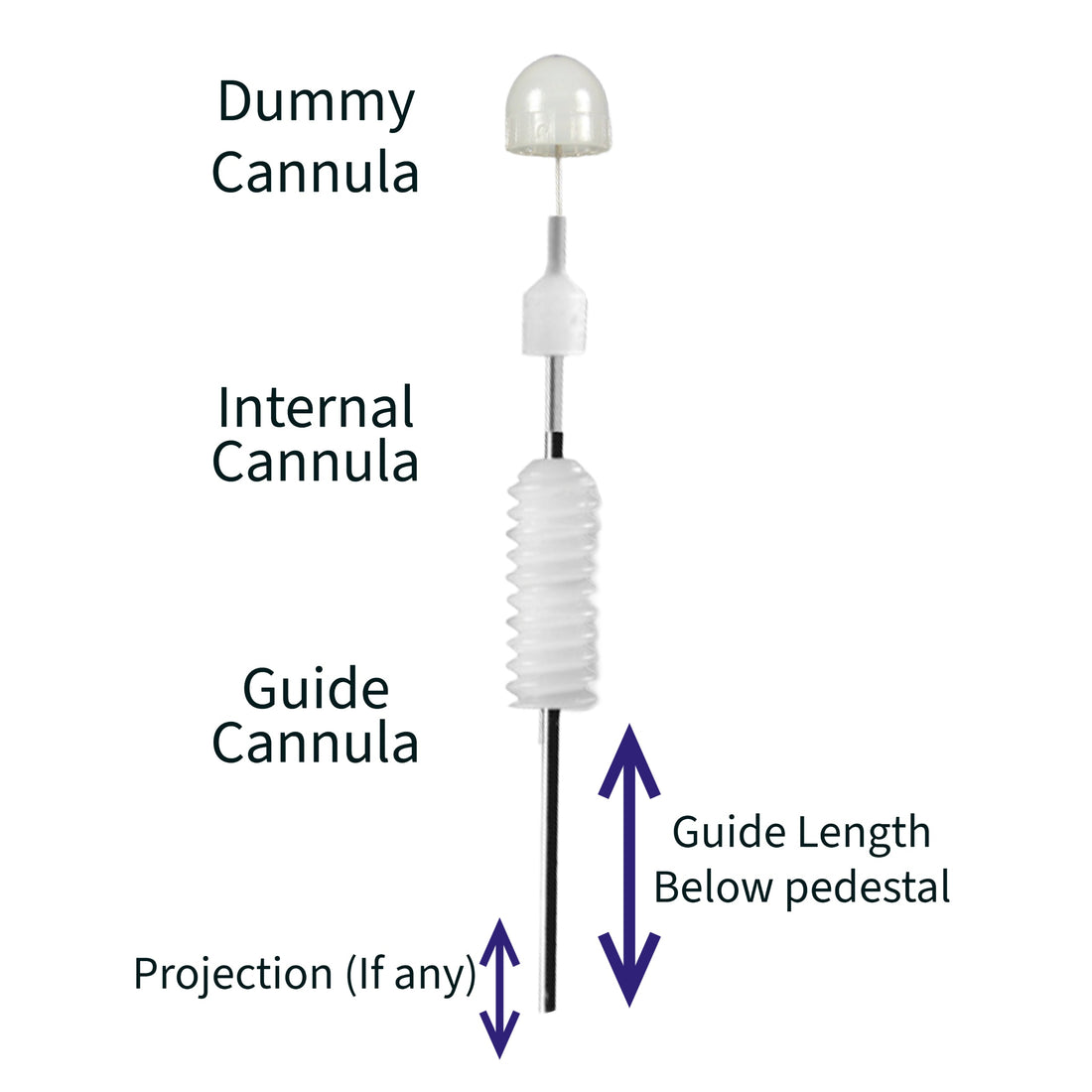

Please find the diagram below, which explains how to measure each component to determine the optimal length for your experiment.

While the components are shown together to illustrate how they function as a unit, please note that each item may be ordered separately.


Single Cannula Infusion Systems for Mice

The short pedestal cannulas are a smaller model of our standard system - with a pedestal heights of 5mm - the standard cut lengths for the guide cannulas are 2mm, 5mm, 8mm and 11mm below the pedestal. The standard length for internal and dummy projection lengths are no projection, 0.5mm projection and 1mm projection.

Single Cannula Infusion Systems for Larger Animals

The standard pedestal cannulas are used for larger animals, such as a rat. It has a pedestal heights of 8mm - the standard cut lengths for the guide cannulas are 2mm, 5mm, 8mm and 11mm below the pedestal. The standard length for internal and dummy projection lengths are no projection, 0.5mm projection and 1mm projection.

If you are looking for custom length cuts, please email us at sales@protechinternational.com

***NOT FOR HUMAN USE***
